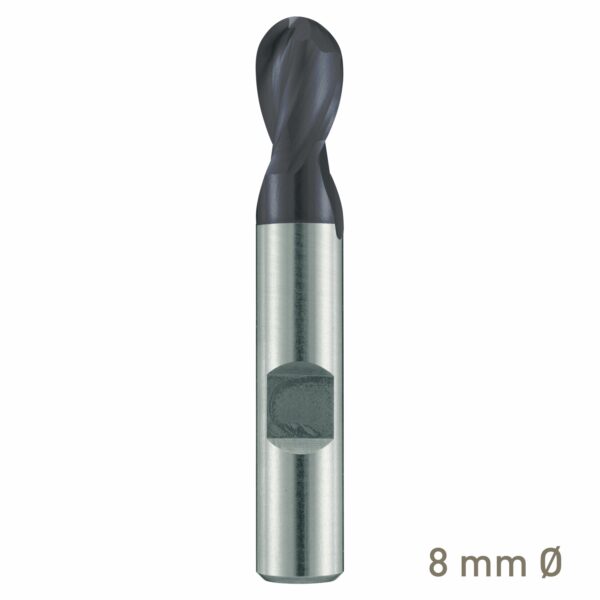

Maykestag ALUNIT HSS-Co8 slot end mill with radius 8mm short series
Professional 8mm short-series slot end mill manufactured from HSS-Co8 and
coated with ALUNIT®, featuring a 4mm radius, two flutes, centre-cutting
geometry and a 30° Type N normal helix for accurate contouring, profiling,
slotting and general milling applications.
The Maykestag Series 1057 is a precision HSS-Co8 slot end mill with a radiused
cutting end, designed for machining curved profiles, rounded transitions,
slots and contoured surfaces. Its centre-cutting geometry allows the cutting
edges to work across the centre of the tool, making it suitable for
applications where the cutter needs to enter the workpiece as well as cut
laterally. The short-series construction provides increased rigidity and helps
reduce tool deflection, supporting accurate machining and a consistent finish.
The ALUNIT® coating provides a hard, wear-resistant cutting surface
designed to reduce friction and heat load while supporting increased cutting
speeds, productivity and consistent machining performance.
radius is a milling cutter with a rounded cutting-end profile instead of a
conventional square end. This geometry allows the tool to machine curved
profiles, rounded slot bottoms and smooth transitions while still performing
slotting and profiling operations. The two-flute design provides useful space
for chip evacuation, while the centre-cutting geometry of the Series 1057
allows the cutter to perform plunge-entry operations where suitable machining
conditions are used.
Product highlights
- HSS-Co8 construction: High-cobalt high-speed steel provides
excellent toughness, heat resistance and cutting-edge durability for
demanding milling applications. - ALUNIT® coating: Super-hard TiAlN coating technology
provides reduced friction, lower heat load and improved resistance to
cutting-edge wear, supporting increased cutting speeds and productivity. - 8mm cutting diameter: Provides a versatile cutting size for
slotting, contouring, profiling and general milling applications. - 4mm cutting radius: Produces rounded slot profiles, curved
surfaces and smooth transitions. - Short-series design: The compact construction increases
tool rigidity and helps minimise deflection during machining. - Two-flute geometry: Provides useful flute space for
effective chip evacuation during slotting and milling operations. - Centre cutting: Cutting edges extend across the centre,
allowing the cutter to enter the workpiece as well as perform lateral
milling. - Type N geometry: Normal helix geometry designed for
general-purpose milling applications. - 30° spiral angle: Provides a balanced cutting action
and assists with effective chip removal. - WN specification: Manufactured according to the specified
Maykestag works-standard geometry. - DIN 1835-B shank: Shank form with driving flat for secure
tool holding in suitable toolholding systems.
Why choose Maykestag?
Maykestag is an Austrian cutting-tool manufacturer focused on
precision-manufactured tools for professional machining. Controlled tool
geometry, cutting materials and coating technology are important factors in
achieving consistent tool life, machining accuracy and surface finish.
The Series 1057 combines HSS-Co8 tool material with
ALUNIT® coating, a rigid short-series construction, two-flute
centre-cutting geometry and a precisely formed radiused cutting end. This
makes it a dependable choice for workshops, toolrooms and production
environments where repeatable slotting, contouring and profiling results are
required.
