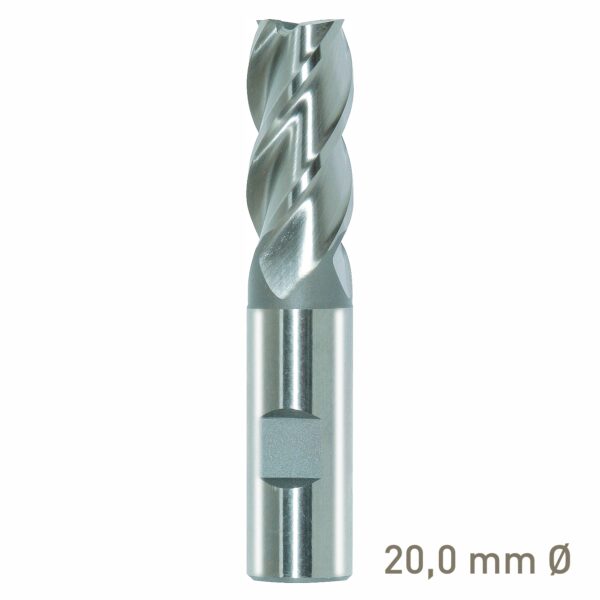

Maykestag HSS-Co8 end mill 20mm short series DIN 844 K
Professional 20mm short-series end mill manufactured from HSS-Co8, featuring
four flutes, a 40° spiral angle and Type N geometry for high-performance
general-purpose milling, finishing and profiling applications.
The Maykestag Code 1616 is a precision HSS-Co8 end mill manufactured to DIN
844 K for professional milling applications. Its four-flute geometry and
40° spiral angle provide a balanced cutting action and efficient chip
removal while supporting high material removal rates and good surface quality.
The short-series design provides a compact tool configuration that increases
rigidity and helps reduce tool deflection. With a 20mm cutting diameter and
20mm shank, this cutter is well suited to demanding general-purpose milling
applications where stable cutting performance, efficient material removal and
dimensional accuracy are required.
cutter manufactured from cobalt-alloyed high-speed steel. The addition of
cobalt improves resistance to heat and wear, making HSS-Co8 suitable for
demanding milling applications. End mills are used to machine slots,
shoulders, profiles, faces and other features through cutting action at the
end and along the circumference of the tool.
Product highlights
- HSS-Co8 construction: Cobalt-alloyed high-speed steel
provides good toughness, heat resistance and cutting-edge durability for
professional milling applications. - 20mm cutting diameter: Provides a robust cutting diameter
suited to demanding general milling, finishing, profiling and
material-removal applications. - Four-flute geometry: Four cutting edges provide a balanced
cutting action and support efficient material removal and surface finishing. - 40° spiral angle: Provides an effective cutting action
and assists with smooth chip evacuation. - Short-series design: Compact construction provides
increased rigidity and helps minimise tool deflection. - Type N geometry: Normal geometry designed for
general-purpose milling and finishing applications. - DIN 844 K: Manufactured to the DIN 844 K standard for
short-series HSS end mills. - 20mm shank: Provides a robust shank configuration for
secure tool holding and stable machining. - DIN 1835-B shank: Shank form with driving flat for secure
tool retention in suitable toolholding systems.
Why choose Maykestag?
Maykestag is an Austrian cutting-tool manufacturer focused on
precision-manufactured tools for professional machining. Consistent control
of cutting geometry, tool material and dimensional tolerances is important
for achieving reliable machining results, tool life and surface finish.
The Code 1616 series combines HSS-Co8 tool material with a
short-series construction, four-flute geometry and 40° spiral angle.
Manufactured to DIN 844 K, it provides a dependable milling solution for
workshops, toolrooms and production environments requiring efficient
material removal and stable cutting performance.
