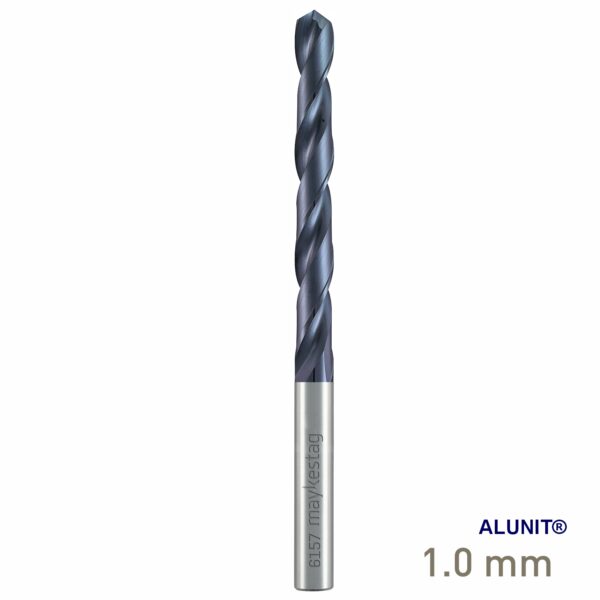

Maykestag solid carbide drill DIN 338 N ALUNIT® 1.00mm
High-performance 1.00mm solid carbide drill with ALUNIT® coating,
manufactured to DIN 338 Type N with a 118° point angle and 5×D
drilling depth for precision drilling in demanding materials.
The Maykestag Code 6157 is a precision solid carbide drill with
ALUNIT® coating, designed for professional drilling applications.
Manufactured to DIN 338 Type N, the drill features a 118° point
angle, two cutting edges and a drilling depth capability of up to
5×D. The 1.00mm drill diameter is matched by a 1.00mm h6 shank,
providing a compact configuration for precision toolholding.
The ALUNIT® coated design is intended to provide increased tool
performance and durability compared with the corresponding bright
solid carbide version. The drill is particularly suited to demanding
machining applications where accurate hole production and reliable
tool life are important.
manufactured entirely from carbide rather than having a carbide tip
brazed onto a steel body. The high rigidity and wear resistance of
solid carbide make these drills particularly suitable for precision
machining and higher-performance drilling applications.
Product highlights
- Solid carbide construction: High rigidity and
wear resistance for precision drilling applications. - ALUNIT® coating: Coated version of the Maykestag
solid carbide drill range for increased performance and durability. - 1.00mm drilling diameter: Precision small-diameter
drilling for accurate hole production. - DIN 338 Type N: Standard stub-drill geometry for
general-purpose drilling applications. - 118° point angle: Conventional drill-point geometry
for controlled centring and cutting. - 5×D drilling depth: Designed for drilling depths
of up to approximately five times the drill diameter. - 2 cutting edges: Two-flute cutting geometry for
efficient chip formation and evacuation. - 1.00mm h6 shank: Precision nominal shank matching
the drill diameter.
Why choose Maykestag?
Maykestag precision cutting tools combine carefully controlled
geometries with specified tool materials and coatings to provide
reliable machining performance. Solid carbide construction provides
the rigidity required for accurate small-diameter drilling, while
ALUNIT® coating is intended to improve performance and durability
in demanding applications.
The Code 6157 series combines solid carbide
construction, ALUNIT® coating, DIN 338 Type N geometry and a
118° point angle for professional drilling applications across
a range of engineering materials.
